This is the readme for the model associated with the paper

Park C, Rubin JE (2013) Cooperation of intrinsic bursting and calcium oscillations underlying activity patterns of model pre-Botzinger complex neurons. J Comput Neurosci 34:345-66

This model written in XPP was implemented by Jon Rubin and Choongseok Park.

XPP is freely available at http://www.math.pitt.edu/~bard/xpp/xpp.html

To run the model in it's default setting start with a command like (depends on your platform):

xppaut OneCellTwoOsc.ode

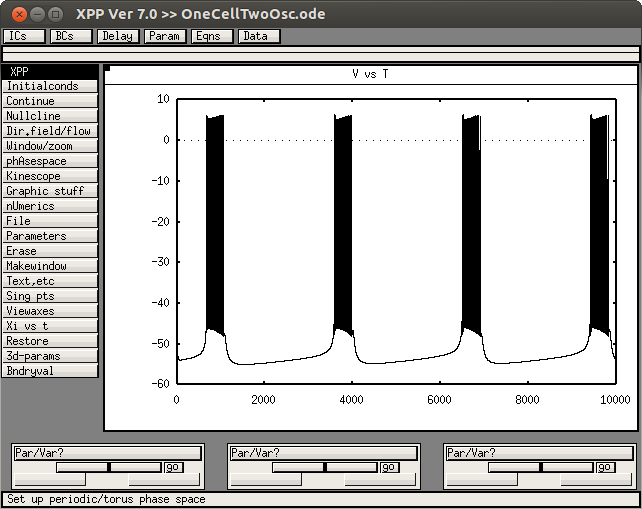

Once XPP starts select Initalconds -> (G)o to see an figure like this:

Inside XPP, use File -> Read set with the included set files to get certain dynamics from the paper:

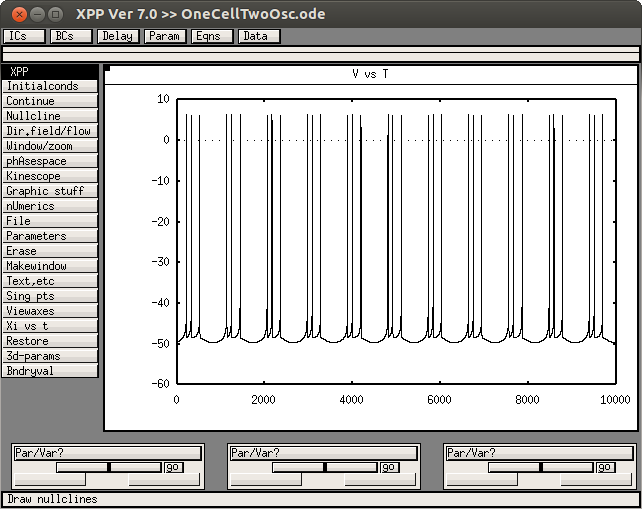

OneCellTwoOsc.ode.setsb the paper's Fig. 2a,

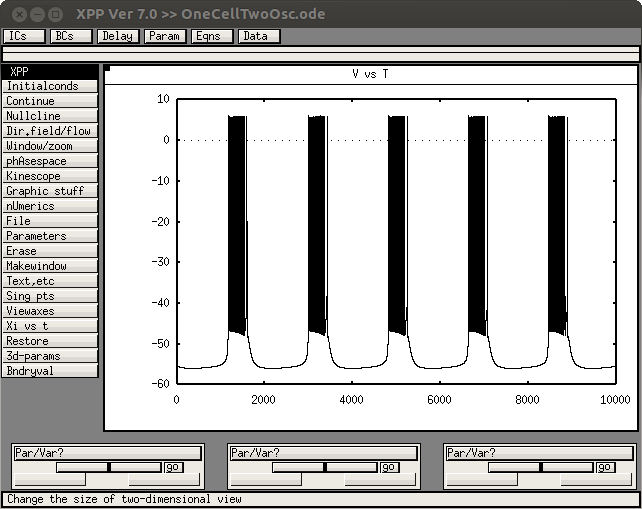

OneCellTwoOsc.ode.setdb the paper's Fig. 2b,

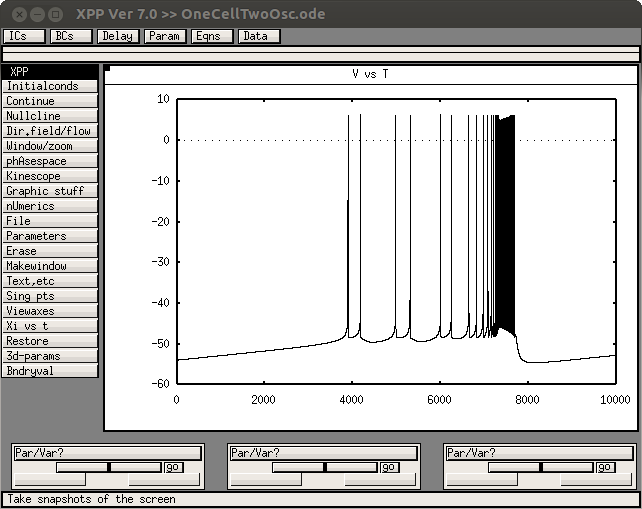

OneCellTwoOsc.ode.setsdb the paper's Fig. 2c
